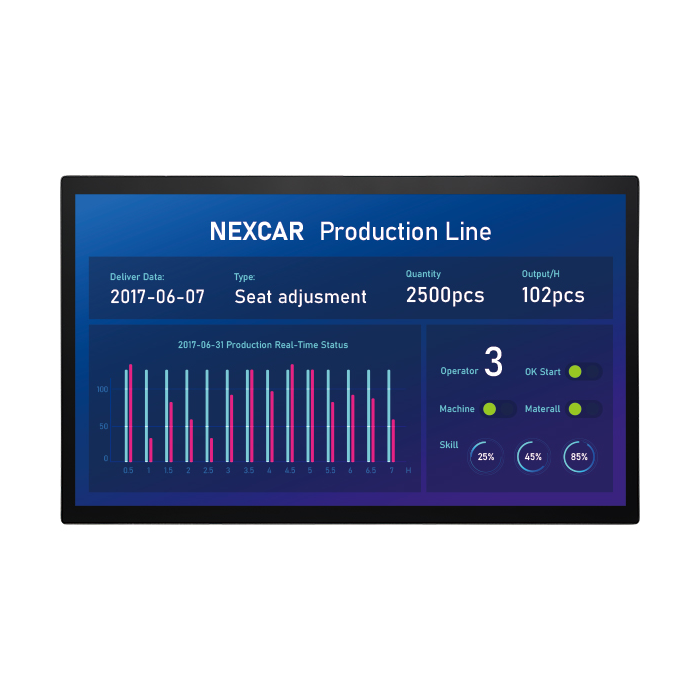

XPPC24-100 23.8” TFT FHD Multi-Touch Panel PC
23.8” TFT FHD 16:9 Slim Bezel, Multi Touchscreen Computer Powered by Intel Apollo Lake J3455 Processor
Key Features:
23.8” TFT FHD 16:9 panel 10 Points P-Cap multi-touch with slim bezel design IP65 protection on the front Support: VESA/panel/openframe mount Intel Celeron processor J3455, quad core, 1.50 GHz 1 x DDR3L up to 8GB, M.2 M-key 2242 for storage device Support power input 19 VDC
The 23.8" fanless touchscreen computer XPPC 24-100 with an industrial motherboard is designed for a wide range of industrial applications. The XPPC 24-100 has a touch screen LED backlight LCD panel with a 1920 x 1080 (FHD) resolution and a brightness of 350 nits. The front panel's flush design and compliance with the IP65 standard by panel mount make it ideal for industrial applications. The Intel Celeron processor powers the XPPC 24-100, which supports DDR3L memory up to 8GB. The XPPC 24-100 has a slim design and is lightweight. XPPC 24-100 supports multiple mounting options based on application. The XPPC 24-100 can be used in a variety of situations. For instance, a hotel self-check-in system, a department store, a welcome board, and advertising.
Key Features:
23.8” TFT FHD 16:9 panel
10 Points P-Cap multi-touch with slim bezel design
IP65 protection on the front
Support: VESA/panel/openframe mount
Intel Celeron processor J3455, quad core, 1.50 GHz
1 x DDR3L up to 8GB, M.2 M-key 2242 for storage device
Support power input 19 VDC
This product is listed in
Industrial Automation , Nexcom , Industrial Panel Computers
Panel
LCD size: Innolux G-series 23.8”, 16:9 Resolution: Full HD 1920 x 1080 Luminance Contrast ratio: 1000 LCD color: 16.7M Viewing angle: 89 (U), 89 (D), 89 (L), 89 (R)
Touch Screen
10 Points P-Cap (projected capacitive touch) Optical bonding Glass surface treatment: AS
System
CPU: on-board Intel® Celeron® processor J3455,1.50GHz, 2M cache Graphic: Intel® HD Graphics
Main Memory
1 x SO-DIMM socket supprt up to 8GB DDR3L 1866 MHz, non-ECC and un-buffered memory
Storage Device
1 x M.2 2242 Key M SSD (support SATA 3.0)
Expansion
1 x mini-PCIe full-size connector with SIM slot (full-size) on board, support Wi-Fi/LTE module
Rear I/O
LED for power on/off Power switch 19V DC-in power jack lock type 2 x RJ45 with LEDs for Gigabit LAN 1 x HDMI 2.0, resolution 4096 x 2160 60Hz 2 x USB 3.0 1 x Line-out COM 1: RS232/422/485
Front I/O
Mechanical
Color/material: black silver/metal sheet Support
Environment
Vibration Shock Temperature Operating humidity: 10%~90% relative humidity, non-condensing limits to be at 90%
Dimensions
System: 557.3mm x 337.0mm x 55.05mm System weight: 6 kg Package: 650mm x 480mm x 170mm Package weight: 8.5 kg
Power Supply
1 x External 90W AC/DC power adapter with lock (power adapter is included in accessory) Input: 100VAC to 240VAC Output: DC+19VDC
Certifications
CE (EN55035 + EN55032) FCC Class A (EMI part 15B) LVD (EN62368-1)
OS Support Lists
Windows 10 64-bit Linux 4.1
